Let’s face it everybody wants to get more done with less. Whether we are talking staffing, robots, AI or automated assembly lines – the more you can do faster, the better. The same, of course goes for leak testing. As it’s our business, we know that for some (many) manufacturers, leak testing is a necessary but not so popular activity. It often happens at the end of the manufacturing process and can become a bottleneck.
Factory throughput is a major challenge facing production engineers and woe betide the quality control team that makes that challenge even harder. The leak testing bottleneck can be improved by adding more testers, but a a price or by finding a way to test several parts or assemblies at the same time. Multiple parts are often connected to a common test port using a manifold in the attempt to increase testing throughput.
The manifold approach to leak testing has two serious drawbacks. First, the manifold and the parts themselves create a large volume. The increased volume reduces sensitivity causing longer test times, which is precisely what multiple testing was trying to solve. Given what I just wrote a few sentences ago that doesn’t seem the smart solution does it? But wait, there’s more….
Because the parts are connected to one common air source, the tester has no way to identify which parts failed. A failure in any part demands a second test. This re-testing takes even more time.
Uson has several leak testers that can deliver multi-channel concurrent testing, Optima vT, Vector and Sprint mD. Let’s look at the Sprint mD as it is the most economical and effectively serves the medical device market where high volume production of small parts and devices is common place. Sprint mDcan be configured as a four-channel pressure decay tester with four independent sensors and test circuits contained in one compact machine. Four parts are independently tested at the same time without a manifold.
Each part tested has its own bar graph and status window on Sprint’s large liquid crystal display. The operator knows exactly which parts failed. No re-testing. Because the four test circuits are independent, the volume remains small and the test is much faster than a manifold-type test.
Using the Sprint mD is similar to running four testers at the same time. But it’s better because Sprint costs so much less than four machines.
How it Works

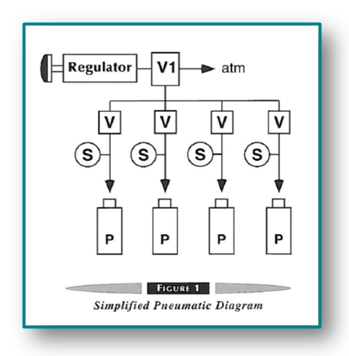

The Sprint mD tester works like this:

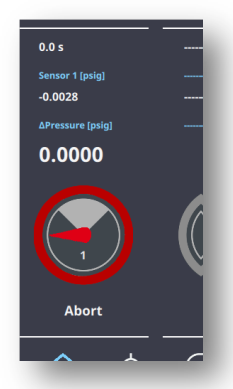

which parts pass and which parts fail.(Figure 2)Applications

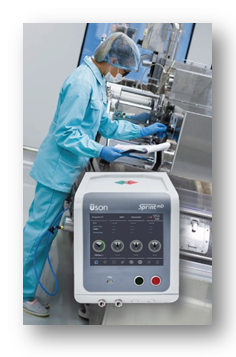

This multi-channel tester is an extremely flexible machine with the ability leak test a broad range of products. From small to large, rigid to flexible, Sprint mD is perfectly suited to the challenge of accurate testing that is both fast and affordable. The Sprint mD can be used to test either multiple products or products that have multiple parts.
Other Sprint Models
Although you can use the four-channel machine to test fewer channels, if you don’t need all four channels, SprintmD is also available in two and three channel configurations.
A Sprint mD’s four channel Sequential tester can test four parts using mass flow in series. One mass flow transducer tests four parts one after the other for leakage, blockage, or for correct flow rate.
Features
Contact us for more information about the Sprint mD’s Multi-Channel leak testing capabilities or reach out to your local Uson Representative.
Uson has simplified FDA compliance to Title 21 CFR Part 11 regulations for medical device manufacturers with the Sprint mD leak tester.
The Quick Setup feature on the Sprint mD leak tester uses Uson algorithms and expertise to get users setup and otimizing parts in minutes.
Leak testing with a programmable regulator option can help eliminate human error and improve the quality of the leak test and results.
